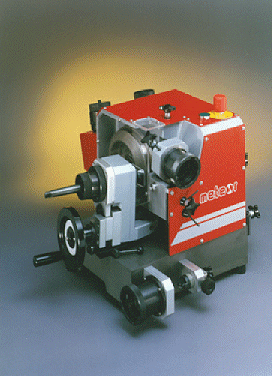

Meteor MM25
For grinding and point thinning of right hand
drills diameters from 3-25mm
With the METEOR MM-25 the drills can be
resharpened with a cam to achieve a radial
relief point. It also allows for a four-facet
drill point method.
The machine is able to do the point
thinning in the same chucking.
Basic Machine
The compact table model consists of.,
- Cast housing
- 0,55kw (break-)motor
- Spindle and grinding wheel as grinding unit.
- Chuck
- Handle and gearbox for the grinding process.
Carborundum-, borazon- and
diamond wheels available.
|
 |
Technical data
Capacity: 1/8" to 1" (3-25 mm)
Point angle: 90°
-140°
Clearance angle: adjustable
Drill clamping device: chuck
Wheel diameter: 160 mm
Spindle speed: 2800 rpm
Electrical connection:
1x230V/3x400V/50/60Hz
Measurements / room requirements:
(700) 600 x 500 x 450 mm
Weight 33 (40) kg
Options
MM-25-U equipped with adjustable point
thinning unit. This is especially appreciated
when drills are used on CNC machines.
|
Extension Possibilities
The METEOR MM-25 can be extended to
the following versions.
- 3-lipped drills
- Stepdrills
- S-drills
- Left-hand drills
- Special collets in different diameters
Made in Switzerland
All machines shown are according
to the CE directives
|
*All prices & specifications subject to change
without notice.
|
